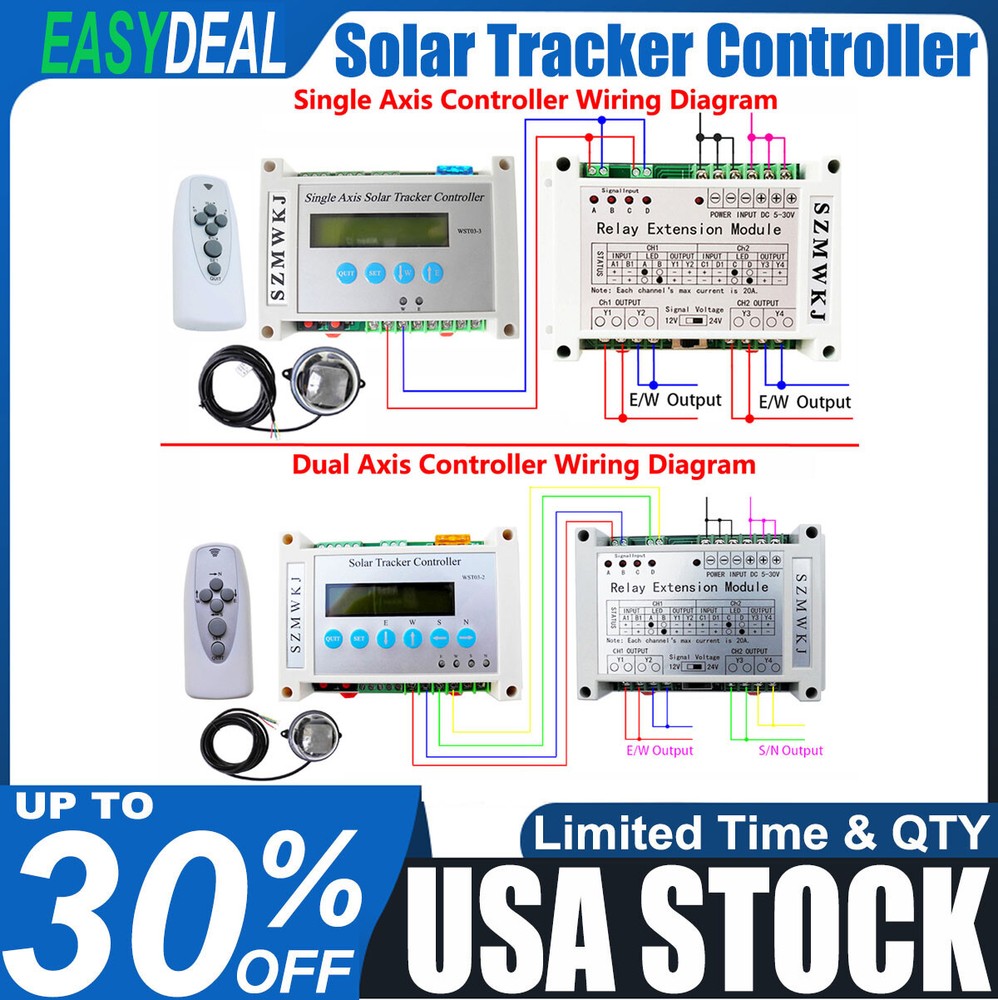

Solar Panel Track Single/Dual Axis LCD Solar Tracker Controller +Relay Module EL
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Current Output | Does not apply |
| System Configuration | Does not apply |
| Solar Technology | Solar Tracking |
| Power Source | Electricity |
| Current Rating | Does not apply |
| MPN | Does Not Apply |
| Brand | SZMWKJ |
| Voltage | 12V/24V |
| Features | Does not apply |
| Country/Region Of Manufacture | China |
| Charging Mode | Does not apply |
| Resistance Properties | Does not apply |
| Application | Home/Garden |
| Power | Does not apply |
DescriptionSolar Panel Track Single/Dual Axis Solar Tracker Controller +Relay Module Package Included Optional A: Only 1PCS Single Axis Solar Tracker Controller（Controller Box+Light Sensor+IR Remote). Optional B: Only 1PCS Dual Axis Solar Tracker Controller（Controller Box+Light Sensor+IR Remote). Optional C: Only 1PCS Relay Extension Module. Optional D: Single Axis Solar Tracker Controller+Relay Extension Module. Optional E: Dual Axis Solar Tracker Controller+Relay Extension Module. Notes: Pls check each mode carefully and choose the right mode as you need! Single Axis Solar Tracker Controller Specification: Product Name WST03-3 Solar Tracker Controller Brand SZMWKJ Condition 100% New Controller Box Dimension 145x90x40mm (5.71"x3.54"x1.57") Input Voltage DC 12V/24V (DC 9V~35V) Max Load Current 15A Operating Temperature -20℃ to +60℃ Tracking Accuracy ≤1° Features: 1.High tracking accuracy, average tracking accuracy ≤ 1° (Actual accuracy is related to the platform’s moving speed); 2.The light sensor has a wide range of detection angle and high accuracy. It’s inside the waterproof case, waterproof, dustproof and anti-aging; 3.With LCD display which can show multiple working modes and parameters; 4.Many of the parameters can be set (Tracking accuracy, threshold value of the light sensor, threshold value of the wind speed sensor, the interval time of cyclical tracking, etc...); 5.With strong wind protection mode (Wind speed sensor is required); 6.Can set the platform stay at any position at night (or cloudy day); 7. Can connect limit switch; 8.Can be operated by IR remote control or the buttons on the controller box; 9.Reverse battery protection, over-current protection; standby current ≤15mA. Dual Axis Solar Tracker Controller Specification: Product Name WST03-2 Solar Tracker Controller Brand SZMWKJ Condition 100% New Controller Box Dimension 145x90x40mm (5.71"x3.54"x1.57") Input Voltage DC 12V/24V (DC 9V~35V) Max Load Current 10A Operating Temperature -20℃ to +60℃ Tracking Accuracy ≤1° Features: 1.High tracking accuracy, average tracking accuracy ≤ 1° (Actual accuracy is related to the platform’s moving speed); 2.The light sensor has a wide range of detection angle and high accuracy. It’s inside the waterproof case, waterproof, dustproof and anti-aging; 3.With LCD display which can show multiple working modes and parameters; 4.Many of the parameters can be set (Tracking accuracy, threshold value of the light-sensor, threshold value of the wind speed sensor, the interval time of cyclical tracking, etc...); 5.With strong wind protection mode (Wind speed sensor is required); 6.Can set the platform stay at any position at night (or cloudy day); 7. Can connect limit switch; 8.Can be operated by IR remote control or the buttons on the controller box; 9.Reverse battery protection, over-current protection; standby current ≤15mA. Relay Extension Module This relay module is a kind of power switch module which can be used for DC 5-30V system. It mainly contains 4-way relay and protection device. It can control two-way DC brush motors to finish positive inversion movement; It can also synchronously control two-way DC loads or time-sharing control four-way DC loads. Technical Parameters Condition: 100% Brand New Product Name: Relay Extension Module Relay Coil Voltage: DC 12V/24V Load Voltage: DC 5-30V Each Channel Max Current: 20A Operating Temperature: -20℃ ~ 60 ℃ Protection Class: IP52 Dimension: 145*90*41mm (5.71*3.54*1.61inch) Net Weight: 275g Payment* We accept PayPal only. * All major credit cards are accepted through secure payment processor PayPal. * Payment must be received within 7 business days of auction closing. * Please make sure your paypal and ebay address is correct. Or not, please correct it before payment. Shipping* This item will be shipped out within the Stated Handling Time after confirmed payment received. * Goods in stock in USA, buyer can get the parcel around 3-5 business days. * We provide tracking number freely for all buyers. * Please confirm your shipping address is correct. Buyers are responsible for undeliverable order due address mismatch. We reserve the right to charge shipping fee to reship undeliverable items.
