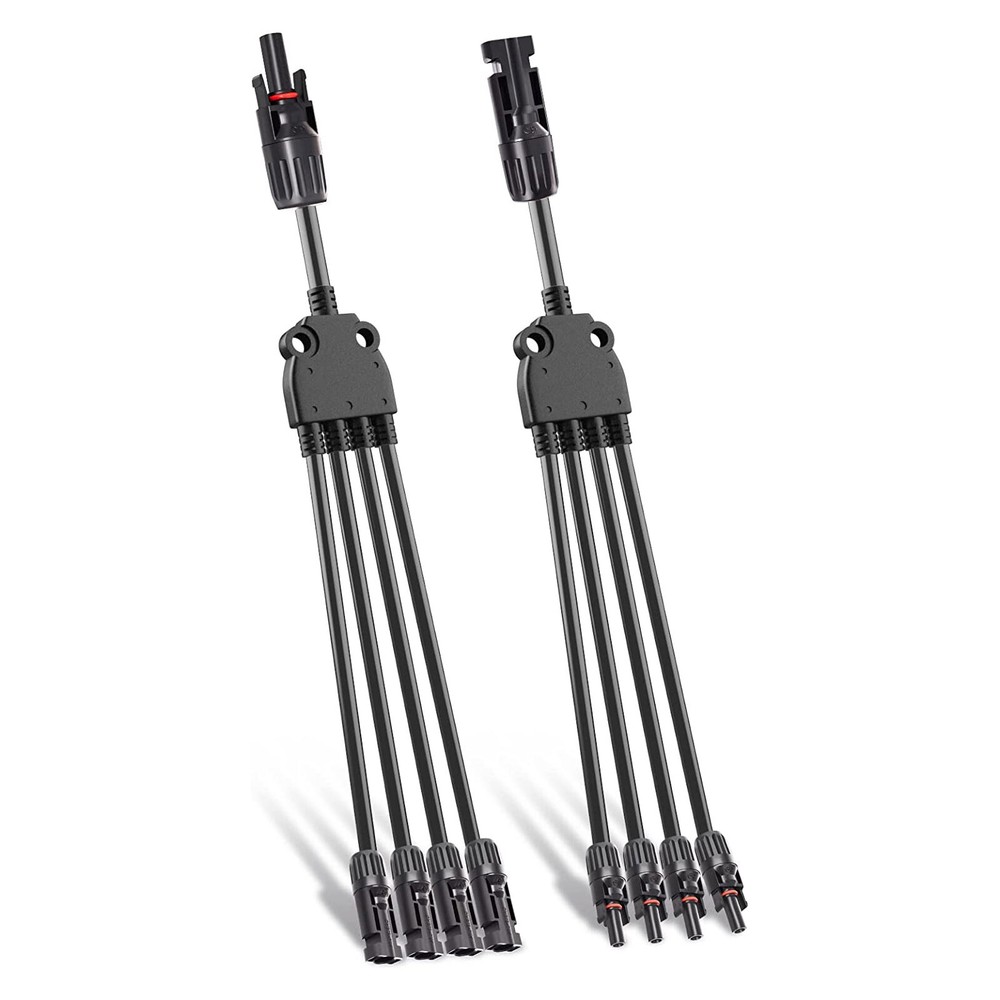

4in1 Solar Panel Y Branch Cable Connection PV Modul Adapter Connector Extension
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Application | Home/Garden |
| Brand | Unbranded/Generic |
| Color | Black |
| Connector Type | MC4 |
| Current Output | 20-29 A |
| Current Rating | 21-30 A |
| Degree Of Protection | IP67 |
| Features | Corrosion Resistant |
| Insulation Material | PPO/PC |
| Inverter Technology | Microinverter |
| Material | UV-Resistant Nylon |
| Model: | Y Branch Connector |
| MPN | Does not apply |
| Power | Less Than 100 W |
| Power Source | Solar |
| Protection Properties | Discharge Protection |
| Recommended Environment | Outdoor |
| Resistance Properties | Abrasion Resistant |
| Solar Technology | Polycrystalline |
| System Configuration | Off-Grid |
| Type | Solar Panel kits |
| Voltage | 12 V |
100% Genuine High Quality Fast ShippingHomeShippingPaymentReturn PolicyAbout UsContact UsSTORE PAGESOtherSOLAR PANELSOLAR PANEL KITSOLAR BATTERY SYSTEMACCESSORIESSolar Street LightEV CHARGERYou may also like4in1 Solar Panel Y Branch Cable Connection PV Modul Adapter Connector ExtensionPRODUCT DESCRIPTION--- Branch Connectors Conductor pin is tinned Copper: made of PPO + PA material. It makes a rock solid connection after you crimp the pin to the wire, and these are operated perfectly under heavy load, anti-aging and resistance to ultraviolet radiation.--- UL certification y branch connector Rated Current: 20A; Rated voltage: TUV 1000V DC / UL 600V DC; These connectors Hard plastic IP67 Waterproof and resist dust build up. Widely Operating Temperature range: -40℉ until 185℉, fireproof and Lower contact resistance .--- This Y solar connectors are designed to complete a solar panel (PV) array, typically in parallel applications. Red to red, black to black, Better to recognize polarity.It could be used as solar panel wiring for connecting two solar panels in parallel and for solar combiner box.--- UL certification fastness of male and female points with stable self-locking system which is easy to lock and open. Quick Connect & Disconnect Connector Design.--- Package:1 pairs of solar Y-branch connectors, If you have any product quality problems, you can contact us at any time, and we will solve your problem by refund or exchange. Product information:• Insulation Material: PPO• Rated Current: 20A(4mm²）• Rated Voltage: DC1000V• Contact Resistance: ≤5mΩ• Insulation Resistance: >500mΩ• Operating Temperature range: -40℃ until+90℃• Degree of Protection: IP67• Flame Class: UL94-V0• Safety Degree: Ⅱ• Suitable Single Core Cable Section: 1.5mm² -- 6mm² ( include AWG14, AWG13,AWG12, AWG11,AWG10 ) Wide compatibility:Cable wiring connectors is suitable for most solar connectors on the market and compatible with 14-10AWG solar cables. Safe:Solar Connector has passed CE, TUV certification, up to 20A current can flow. High quality:Waterproof and dustproof, works well at -40°F - 200°F Durable:Y Branch wire splitter withstand tens of millions of bending tests.Using special technology, anti-aging, UV-resistant, long service life for decades. Easy to use:Plug and play, easy to connect and disconnect, hard to fall off.About UsPaymentShippingReturnsContact UsWelcome to our store, your support is the biggest driving force for us to move forward.Our main business is EV CHARGER,SOLAR POWERED OUTDOOR / INDOOR LIGHTS ,TRAVEL SOLAR PANEL and so on.The product is directly connected with the factory to ensure product quality.Please rest assured to buy, we will provide you with a perfect shopping experience!We accept payment via Paypal only.Payment must be completed within 7 days.If you have any problems about payment, please contact us by ebay message.We only ship to confirmed eBay addresses. Please comfirm that your eBay address is in line with your shipping address.Most of our products are provided with shipping services. Also, the each additional item means exactly the the same color and size.The item shipping from USA. It takes about 5-10 working days to your addresses; Transit time may be a little delayed because of the bad weather. If you do not receive your item within 15 working days since payment finished, please contact us immediately for further assistance.If you have any issue about Item. Please contact us with 7 days since you receive the item and and return to us within 30 days from the delivery date for exchange or refund.If you need return, please contact our customer service representative, let us know the detailed problem and send us some pictures for confirmation.We strive for 100% customer satisfaction! Positive Feedback is very important to us.If you have any questions, please feel free to contact us via "Ask seller a question" . We will reply your email within 24 working hours.About UsWelcome to our store, your support is the biggest driving force for us to move forward.Our main business is EV CHARGER,SOLAR POWERED OUTDOOR / INDOOR LIGHTS ,TRAVEL SOLAR PANEL and so on.The product is directly connected with the factory to ensure product quality.Please rest assured to buy, we will provide you with a perfect shopping experience!PaymentWe accept payment via Paypal only.Payment must be completed within 7 days.If you have any problems about payment, please contact us by ebay message.ShippingWe only ship to confirmed eBay addresses. Please comfirm that your eBay address is in line with your shipping address.Most of our products are provided with shipping services. Also, the each additional item means exactly the the same color and size.The item shipping from USA. It takes about 5-10 working days to your addresses; Transit time may be a little delayed because of the bad weather. If you do not receive your item within 15 working days since payment finished, please contact us immediately for further assistance.ReturnsIf you have any issue about Item. Please contact us with 7 days since you receive the item and and return to us within 30 days from the delivery date for exchange or refund.If you need return, please contact our customer service representative, let us know the detailed problem and send us some pictures for confirmation.Contact UsWe strive for 100% customer satisfaction! Positive Feedback is very important to us.If you have any questions, please feel free to contact us via "Ask seller a question" . We will reply your email within 24 working hours.
